概要

VPC Lambda から NLB → Proxy (Squid) 経由でインターネットへアクセスするまでを書きます。

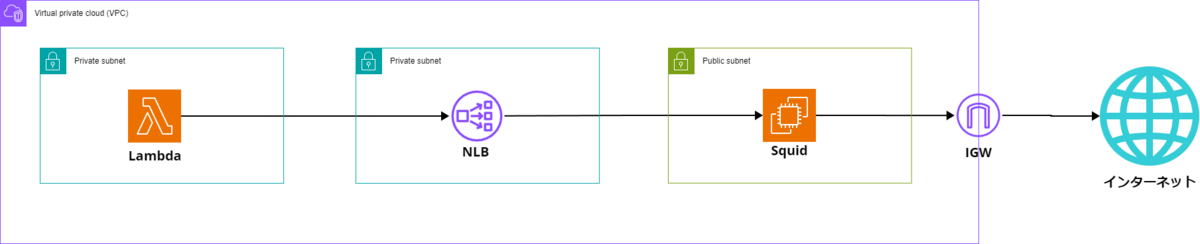

構成図は以下のような形です。

やってみる

1. リソース作成

まずは、以下のテンプレートを CloudFormation に流してリソースを作成します。

yaml テンプレート

AWSTemplateFormatVersion: "2010-09-09"
Description: "create EC2Instance and NLB"
Parameters:
  KeyName:
    Type: AWS::EC2::KeyPair::KeyName
    Description: "Key Pair Name"
  InstanceType:
    Type: String
    Description: "EC2 Instance Type"
    Default: "t3.micro"
  ImageId:
    Type: AWS::EC2::Image::Id
    Description: "EC2 Image ID"
    Default: "ami-05a03e6058638183d"

Metadata:
  AWS::CloudFormation::Interface:
    ParameterGroups:
      - Label:
          default: "EC2 Instance Configuration"
        Parameters:
          - KeyName
          - InstanceType
          - ImageId
    ParameterLabels:
      KeyName:
        default: "Key Pair Name"
      InstanceType:
        default: "EC2 Instance Type"
      ImageId:
        default: "EC2 Image ID"

Resources:
  VPC:
    Type: AWS::EC2::VPC
    Properties:
      CidrBlock: 10.0.0.0/16
      EnableDnsSupport: true
      EnableDnsHostnames: true
      Tags:
        - Key: Name
          Value: squid-test-vpc

  PublicSubnet1a:
    Type: AWS::EC2::Subnet
    Properties:
      VpcId: !Ref VPC
      CidrBlock: 10.0.1.0/24
      AvailabilityZone: ap-northeast-1a
      MapPublicIpOnLaunch: true
      Tags:
        - Key: Name
          Value: squid-test-public-subnet-a

  PublicSubnet1c:
    Type: AWS::EC2::Subnet
    Properties:
      VpcId: !Ref VPC
      CidrBlock: 10.0.2.0/24
      AvailabilityZone: ap-northeast-1c
      MapPublicIpOnLaunch: true
      Tags:
        - Key: Name
          Value: squid-test-public-subnet-c

  PrivateSubnet1a:
    Type: AWS::EC2::Subnet
    Properties:
      VpcId: !Ref VPC
      CidrBlock: 10.0.3.0/24
      AvailabilityZone: ap-northeast-1a
      Tags:
        - Key: Name
          Value: squid-test-private-subnet-a

  PrivateSubnet1c:
    Type: AWS::EC2::Subnet
    Properties:
      VpcId: !Ref VPC
      CidrBlock: 10.0.4.0/24
      AvailabilityZone: ap-northeast-1c
      Tags:
        - Key: Name
          Value: squid-test-private-subnet-c

  InternetGateway:
    Type: AWS::EC2::InternetGateway
    Properties:
      Tags:
        - Key: Name
          Value: squid-test-igw

  AttachGateway:
    Type: AWS::EC2::VPCGatewayAttachment
    Properties:
      VpcId: !Ref VPC
      InternetGatewayId: !Ref InternetGateway

  PublicRouteTable:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref VPC
      Tags:
        - Key: Name
          Value: squid-test-public-route-table

  PublicRoute:
    Type: AWS::EC2::Route
    DependsOn: AttachGateway
    Properties:
      RouteTableId: !Ref PublicRouteTable
      DestinationCidrBlock: 0.0.0.0/0
      GatewayId: !Ref InternetGateway

  PrivateRouteTable:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref VPC
      Tags:
        - Key: Name
          Value: squid-test-private-route-table

  AttachPrivateRouteTable1a:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      SubnetId: !Ref PrivateSubnet1a
      RouteTableId: !Ref PrivateRouteTable

  AttachPrivateRouteTable1c:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      SubnetId: !Ref PrivateSubnet1c
      RouteTableId: !Ref PrivateRouteTable

  AttachPublicRouteTable1a:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      SubnetId: !Ref PublicSubnet1a
      RouteTableId: !Ref PublicRouteTable

  AttachPublicRouteTable1c:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      SubnetId: !Ref PublicSubnet1c
      RouteTableId: !Ref PublicRouteTable

  LambdaSecurityGroup:
    Type: AWS::EC2::SecurityGroup
    Properties:
      GroupDescription: Security Group with Inbound Rule for Port 3128
      VpcId: !Ref VPC
      Tags:
        - Key: Name
          Value: squid-test-lambda-sg

  EC2InstanceSecurityGroup:
    Type: AWS::EC2::SecurityGroup
    Properties:
      GroupDescription: Security Group with Inbound Rule for Port 3128
      SecurityGroupIngress:
        - IpProtocol: tcp
          FromPort: 3128
          ToPort: 3128
          SourceSecurityGroupId: !Ref LambdaSecurityGroup
        - IpProtocol: tcp
          FromPort: 3128
          ToPort: 3128
          CidrIp: 10.0.3.0/24
        - IpProtocol: tcp
          FromPort: 3128
          ToPort: 3128
          CidrIp: 10.0.4.0/24
      VpcId: !Ref VPC
      Tags:
        - Key: Name
          Value: squid-test-sg


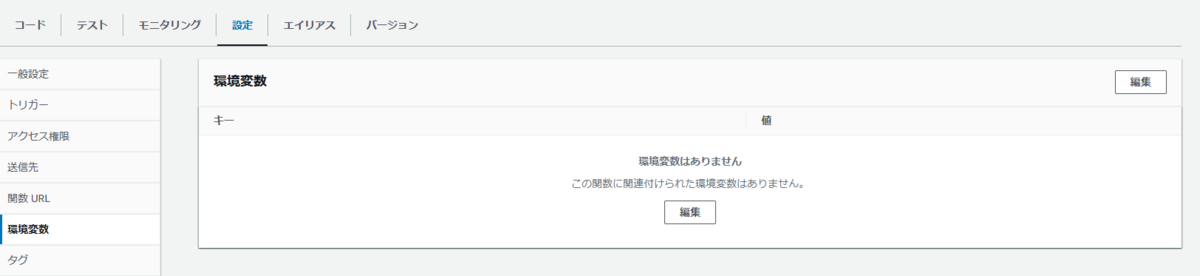

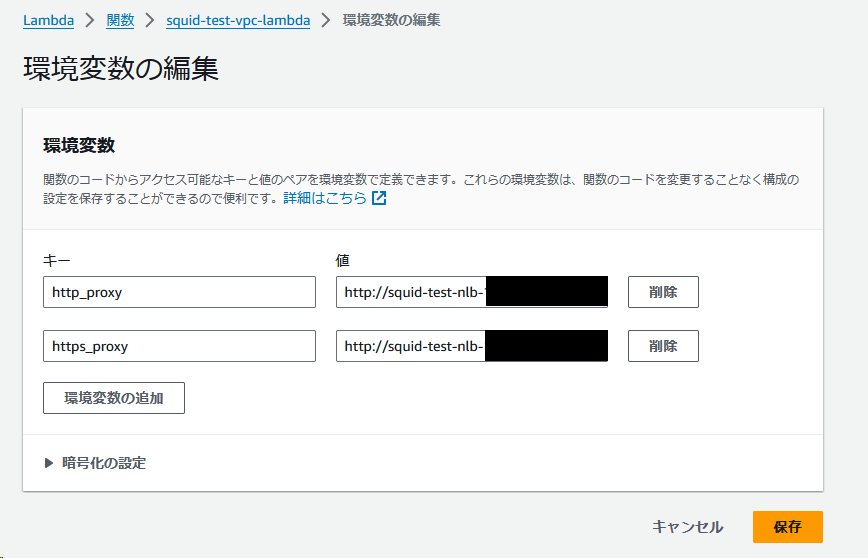

  VPCLambda:
    Type: AWS::Lambda::Function
    Properties:
      Handler: index.lambda_handler
      Role: !GetAtt LambdaExecutionRole.Arn
      FunctionName: squid-test-vpc-lambda
      Runtime: python3.12
      VpcConfig:
        SubnetIds:
          - !Ref PrivateSubnet1a
          - !Ref PrivateSubnet1c
        SecurityGroupIds:
          - !Ref LambdaSecurityGroup

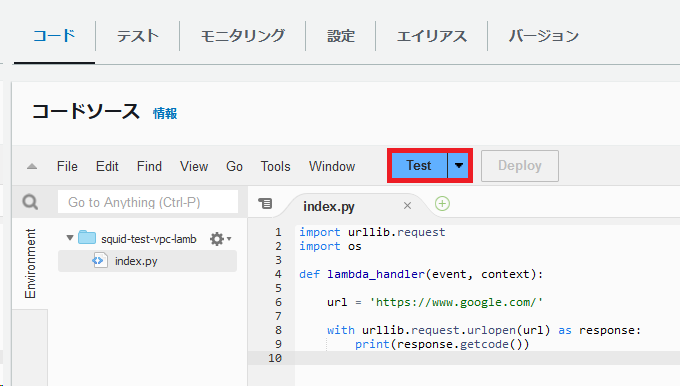

      Code:
        ZipFile: |
          import urllib.request
          import os

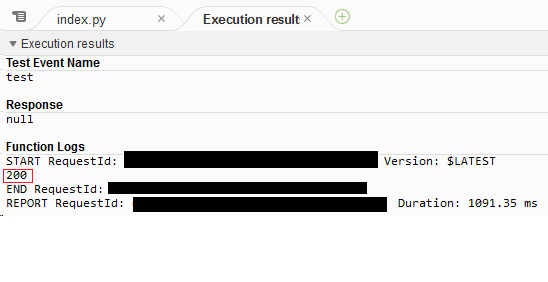

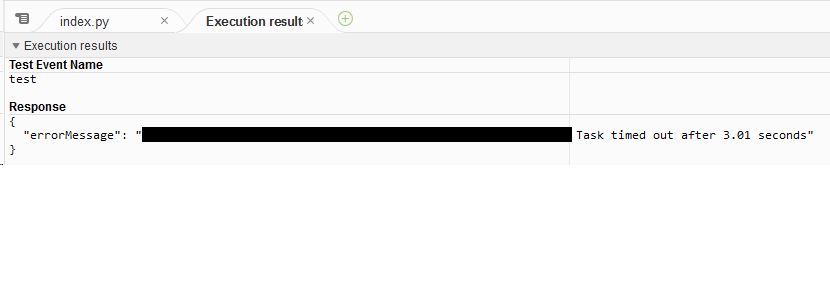

          def lambda_handler(event, context):

              url = 'https://www.google.com/'

              with urllib.request.urlopen(url) as response:
                  print(response.getcode())

  LambdaExecutionRole:
    Type: AWS::IAM::Role
    Properties:
      AssumeRolePolicyDocument:
        Version: 2012-10-17
        Statement:
          - Effect: Allow
            Principal:
              Service: lambda.amazonaws.com
            Action: sts:AssumeRole
      ManagedPolicyArns:
        - arn:aws:iam::aws:policy/service-role/AWSLambdaVPCAccessExecutionRole

  EC2Instance:
    Type: AWS::EC2::Instance
    Properties:
      KeyName: !Ref KeyName
      ImageId: !Ref ImageId
      InstanceType: t3.micro
      NetworkInterfaces:
        - AssociatePublicIpAddress: true
          DeviceIndex: 0
          GroupSet:
            - !Ref EC2InstanceSecurityGroup
          SubnetId: !Ref PublicSubnet1a
      UserData: !Base64 |
        #!/bin/bash -ex
          dnf install squid -y
          systemctl start squid
          systemctl enable squid
          sed -i "/network by proxying external TCP connections to unprotected services./a http_access allow localnet" /etc/squid/squid.conf
          systemctl restart squid
      Tags:
        - Key: Name
          Value: squid-test

  NLBTargets3128:
    Type: AWS::ElasticLoadBalancingV2::TargetGroup
    Properties:
      HealthCheckTimeoutSeconds: 10
      Name: tg-squid-test-nlb-3128
      Port: 3128
      Protocol: TCP
      HealthyThresholdCount: 3
      UnhealthyThresholdCount: 3
      Tags:
        - Key: Name
          Value: tg-squid-test-nlb-3128
      Targets:
        - Id: !Ref EC2Instance
          Port: 3128
      TargetType: instance
      VpcId: !Ref VPC

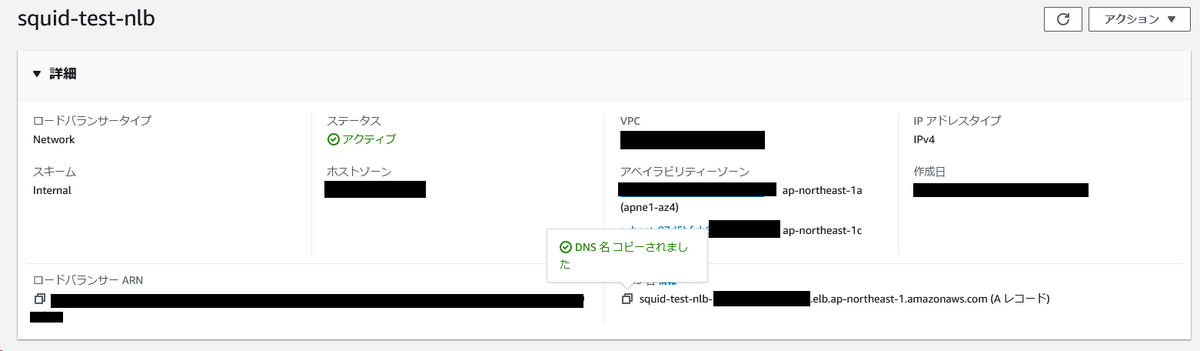

  NLB:
    Type: AWS::ElasticLoadBalancingV2::LoadBalancer
    Properties:
      Name: squid-test-nlb
      Tags:
        - Key: Name
          Value: squid-test-nlb
      Scheme: internal
      LoadBalancerAttributes:
        - Key: deletion_protection.enabled
          Value: false
        - Key: load_balancing.cross_zone.enabled
          Value: true
      Subnets:
        - !Ref PrivateSubnet1a
        - !Ref PrivateSubnet1c
      Type: network

  NLBListener3128:
    Type: AWS::ElasticLoadBalancingV2::Listener
    Properties:
      DefaultActions:
        - TargetGroupArn: !Ref NLBTargets3128
          Type: forward
      LoadBalancerArn: !Ref NLB
      Port: 3128
      Protocol: TCP
