こんにちは。AWS CLIが好きな福島です。

はじめに

GitHub ActionsでIAMロールを利用してAWSへアクセスできることを知ったため、試してみたいと思います。
IAMロールを利用することでIAMのクレデンシャルの管理が不要なため、セキュアにGitHub Actionsを利用できます。

参考

docs.github.com

docs.github.com

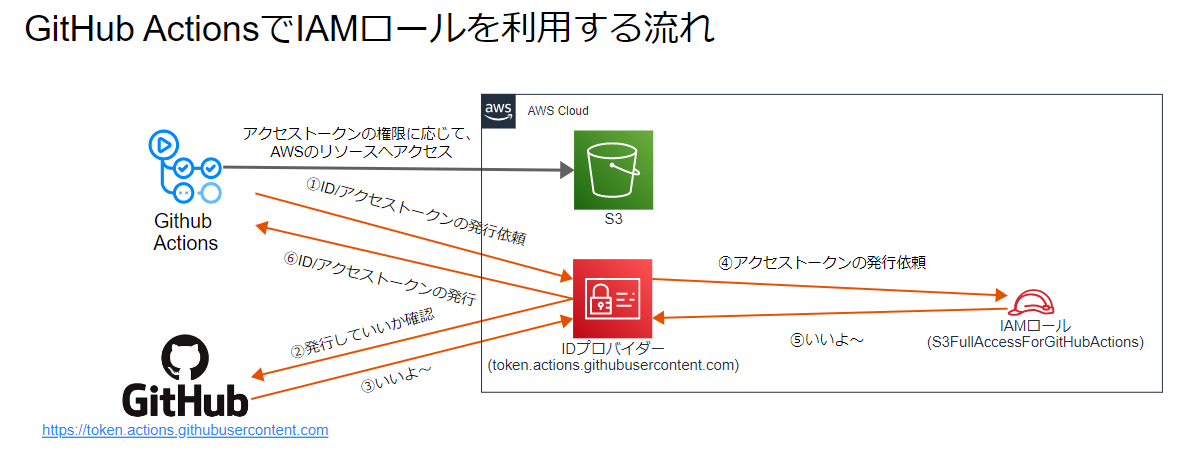

概要図

認証/認可周りは疎いのですが、概要図は以下のイメージになるかと思います。

やること

①IDプロバイダーの設定
②IDプロバイダーへのIAMロールの割り当て
③②で作成したIAMロールの信頼関係の編集
④GitHubのSecretsにIAMロールのARNを保存
⑤GitHub ActionsによるGitHubからS3へのオブジェクトコピー

①IDプロバイダーの設定

  • 「プロバイダー」を追加を押下

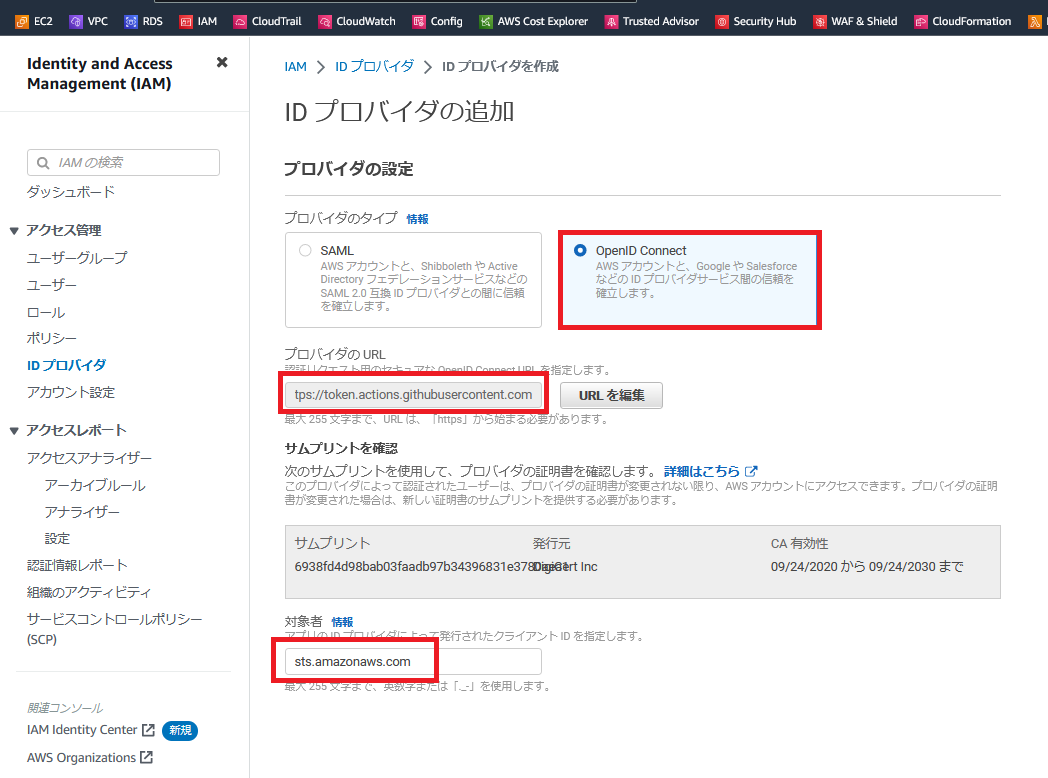

  • OpenID Connectを選択し、以下の情報を入力後、「プロバイダーを追加」を押下

プロバイダーのURL: https://token.actions.githubusercontent.com
対象者: sts.amazonaws.com

②IDプロバイダーへのIAMロールの割り当て

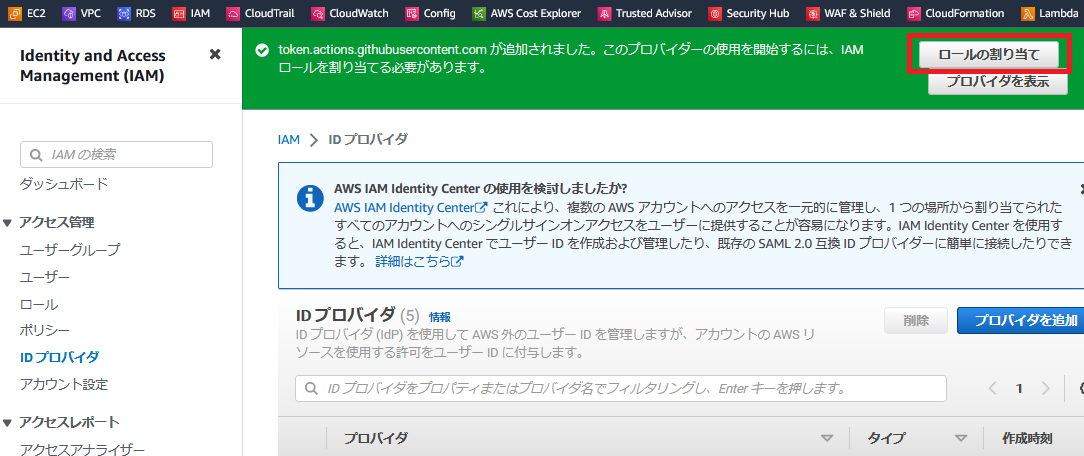

  • IDプロバイダー作成後、右上に表示されている「ロールの割り当て」を押下

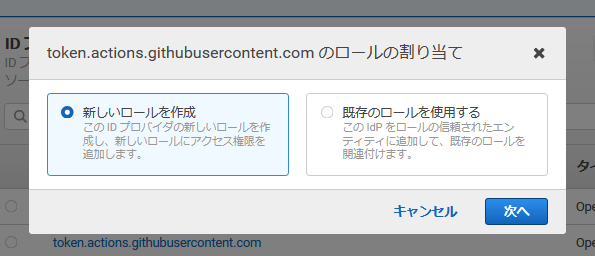

  • 「新しいロールを作成」を選択し、「次へ」を押下

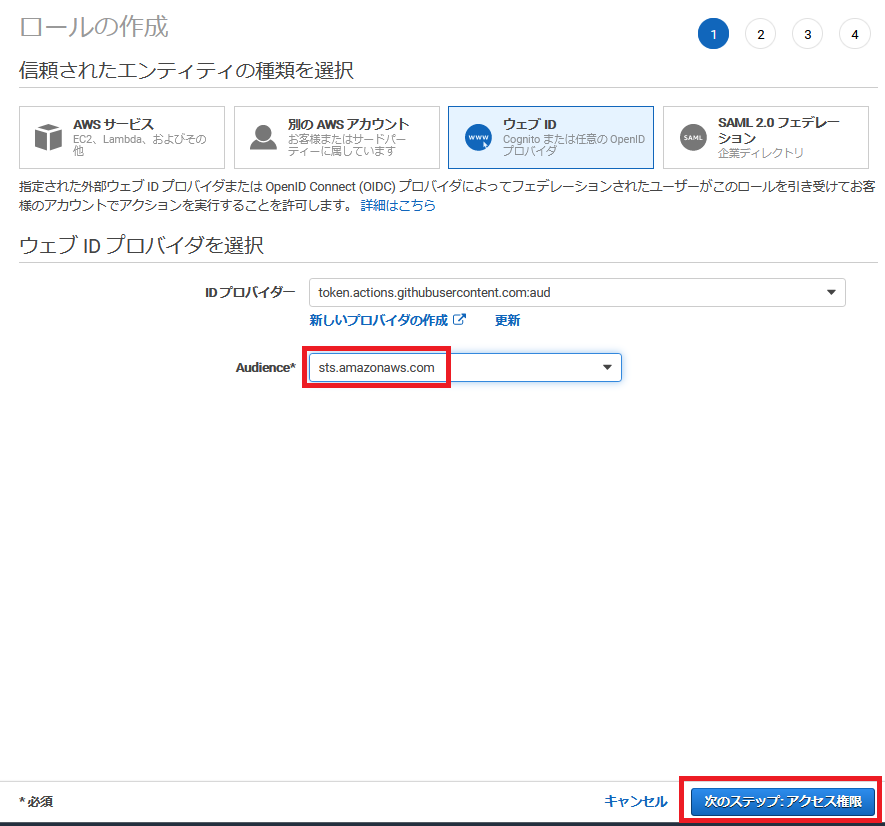

  • Audienceを選択し、次のステップを押下

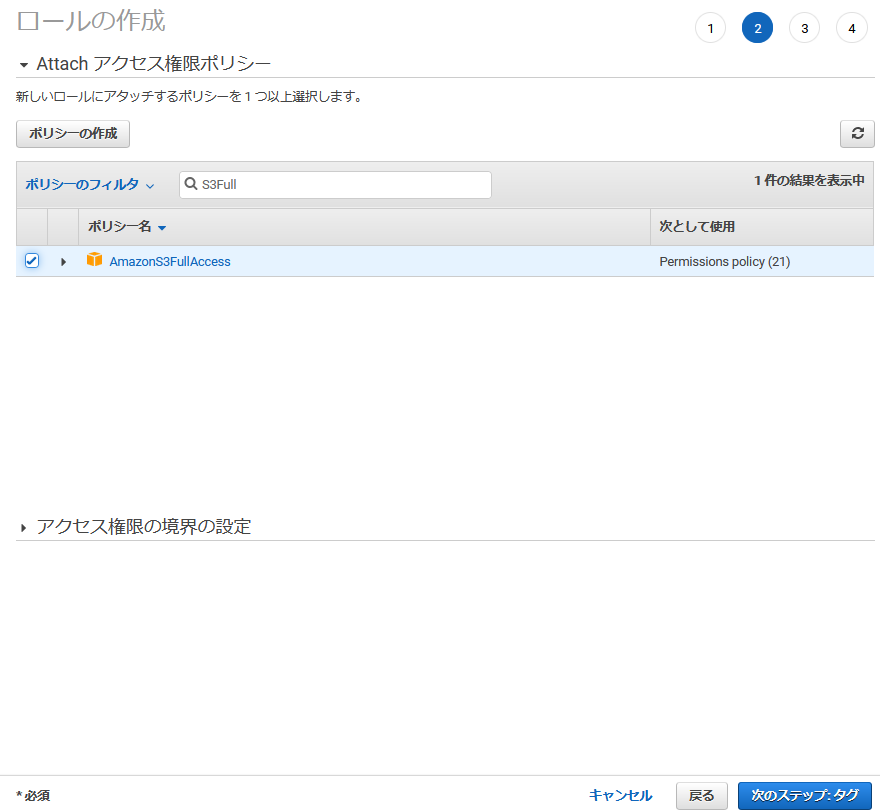

  • IAMロールにアタッチするポリシーを選択し、次のステップを押下

今回は、S3FullAccessをアタッチしますが、本来はGitHub Actionsで必要な権限を適宜割り当てます。

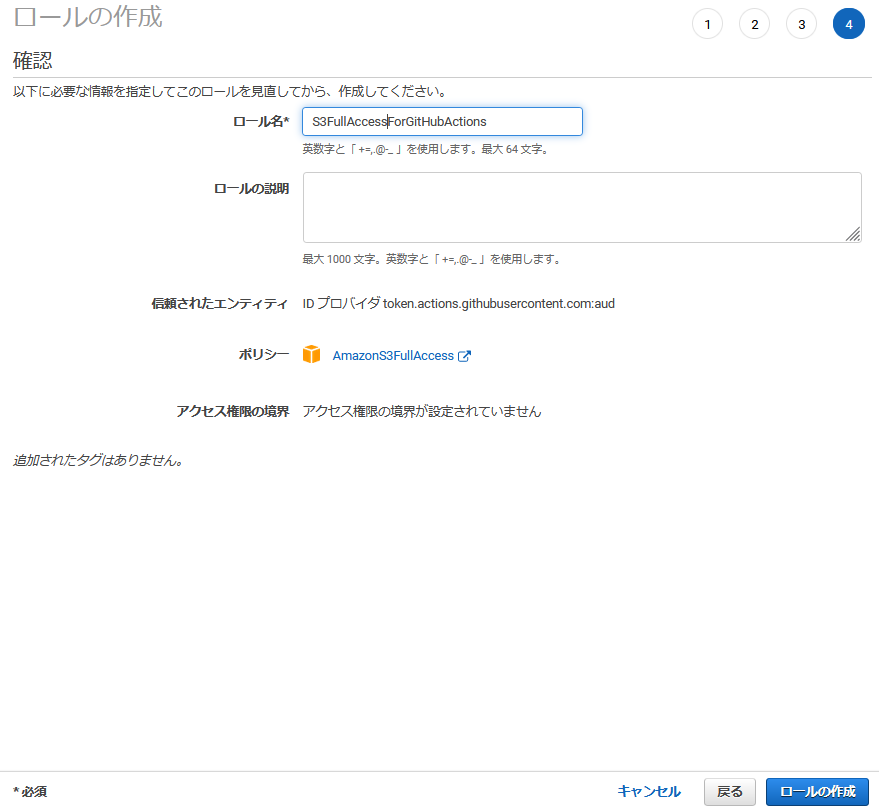

  • タグのところはスキップし、最後にIAMロール名を設定し、「ロールの作成」を押下

今回は、S3FullAccessForGitHubActionsを付与しました。

③②で作成したIAMロールの信頼関係の編集

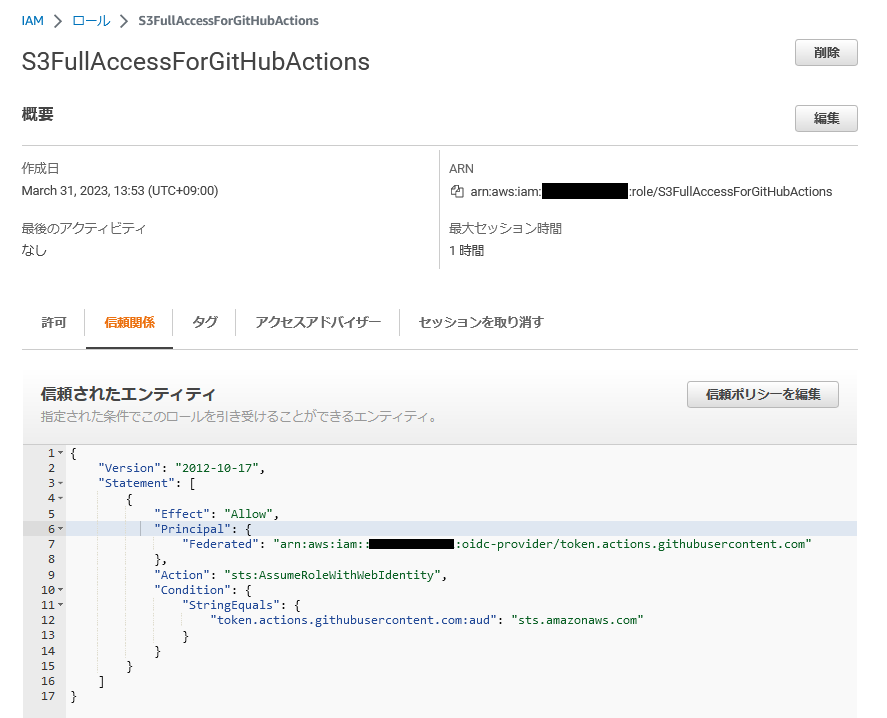

  • デフォルトでは、信頼関係は以下の通りとなっております。

この場合、仮に私のIAMロールのARNが漏洩した際に、私以外の人がGitHub Actions経由でAWSを不正に操作することができてしまいます。

  • よりセキュアにするため、信頼関係を編集し、特定の組織の特定のリポジトリからのみIAMロールを利用できるように変更します。

[AWSアカウントID]と[組織名]、[リポジトリ名]を適切な値に変更します。

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Principal": {
                "Federated": "arn:aws:iam::[AWSアカウントID]:oidc-provider/token.actions.githubusercontent.com"
            },
            "Action": "sts:AssumeRoleWithWebIdentity",
            "Condition": {
                "StringLike": {
                    "token.actions.githubusercontent.com:sub": "repo:[組織名]/[リポジトリ名]:*"
                },
                "StringEquals": {
                    "token.actions.githubusercontent.com:aud": "sts.amazonaws.com"
                }
            }
        }
    ]
}

④GitHubのSecretsにIAMロールのARNを保存

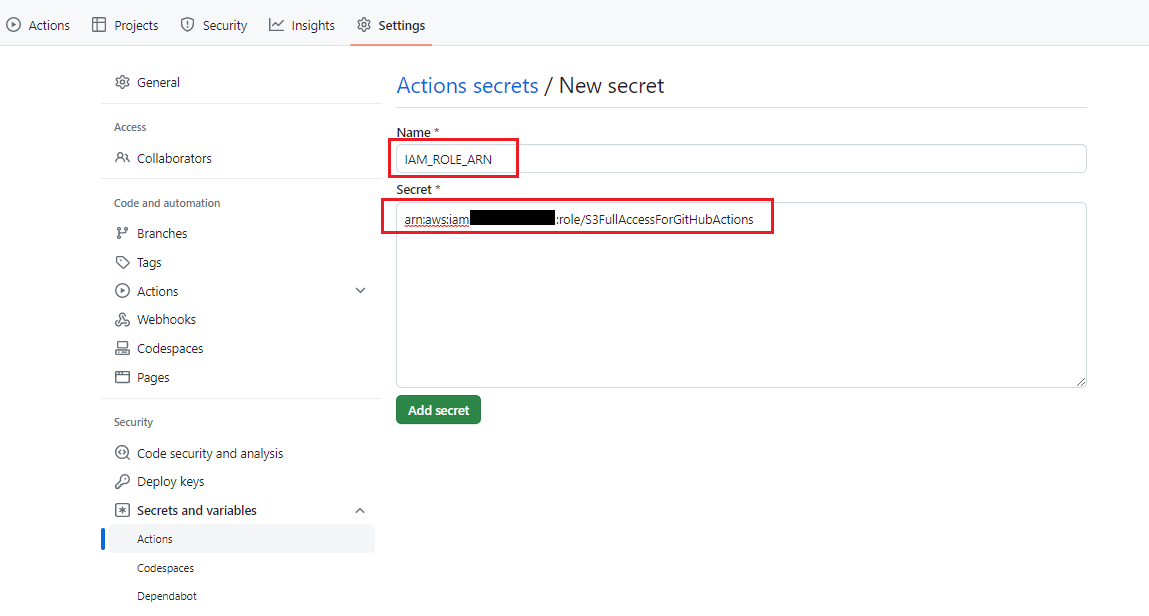

  • Settings、Actions、New repository secretを押下

  • 任意の名前およびIAMロールのARNを設定

⑤GitHub ActionsによるGitHubからS3へのオブジェクトコピー

  • GitHub Actionsのymlファイルの作成
[main] # git clone git@github.com:[組織名]/[リポジトリ名].git
[main] # cd [リポジトリ名]
[main] # mkdir -p .github/workflows
[main] # cd .github/workflows
[main] # vi aws-github-actions.yml

ファイルの中身は以下の通りで<example-bucket-name>、<example-aws-region>を任意の値に変更します。

# Sample workflow to access AWS resources when workflow is tied to branch
# The workflow Creates static website using aws s3
name: AWS example workflow
on:
  push
env:
  BUCKET_NAME : "<example-bucket-name>"
  AWS_REGION : "<example-aws-region>"
# permission can be added at job level or workflow level
permissions:
      id-token: write   # This is required for requesting the JWT
      contents: read    # This is required for actions/checkout
jobs:
  S3PackageUpload:
    runs-on: ubuntu-latest
    steps:
      - name: Git clone the repository
        uses: actions/checkout@v3
      - name: configure aws credentials
        uses: aws-actions/configure-aws-credentials@v2
        with:
          role-to-assume: ${{ secrets.IAM_ROLE_ARN }}
          role-session-name: samplerolesession
          aws-region: ${{ env.AWS_REGION }}
      # Upload a file to AWS s3
      - name:  Copy index.html to s3
        run: |
          aws s3 cp ./index.html s3://${{ env.BUCKET_NAME }}/
  • GitHub Actionsの設定

aws-github-actions.ymlをPushすることでGitHub Actionsの準備が完了です。

[main] # git add aws-github-actions.yml
[main] # git commit -m "Add GitHub Actions for aws"
[main (root-commit) 5cb0f7e] Add GitHub Actions for aws
 1 file changed, 28 insertions(+)
 create mode 100644 .github/workflows/aws-github-actions.yml
[main] # git push
Enumerating objects: 5, done.
Counting objects: 100% (5/5), done.
Delta compression using up to 8 threads
Compressing objects: 100% (3/3), done.
Writing objects: 100% (5/5), 839 bytes | 209.00 KiB/s, done.
Total 5 (delta 0), reused 0 (delta 0)
To github.com:kazuya9831/fk-git.git
 * [new branch]      main -> main
[main] #
  • GitHub Actionsの動作確認

index.htmlファイルを作成し、Pushします。

[main] # cd ../../
[main] # echo "GitHub Actions" > index.html
[main] # git add index.html
[main] # git commit -m "Add index.html"
[main a1e947a] Add index.html
 1 file changed, 1 insertion(+)
 create mode 100644 index.html
[main] #  git push
Enumerating objects: 4, done.
Counting objects: 100% (4/4), done.
Delta compression using up to 8 threads
Compressing objects: 100% (2/2), done.
Writing objects: 100% (3/3), 308 bytes | 308.00 KiB/s, done.
Total 3 (delta 0), reused 0 (delta 0)
To github.com:kazuya9831/fk-git.git
   5cb0f7e..a1e947a  main-> main
[main] #

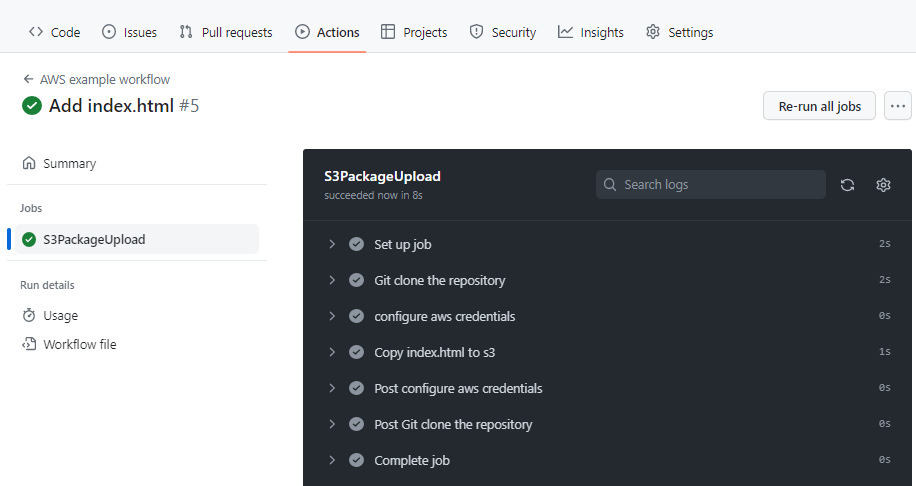

  • GitHub Actionsのステータス確認

GitHubのコンソールからGitHub Actionsが正常終了していることを確認できます。

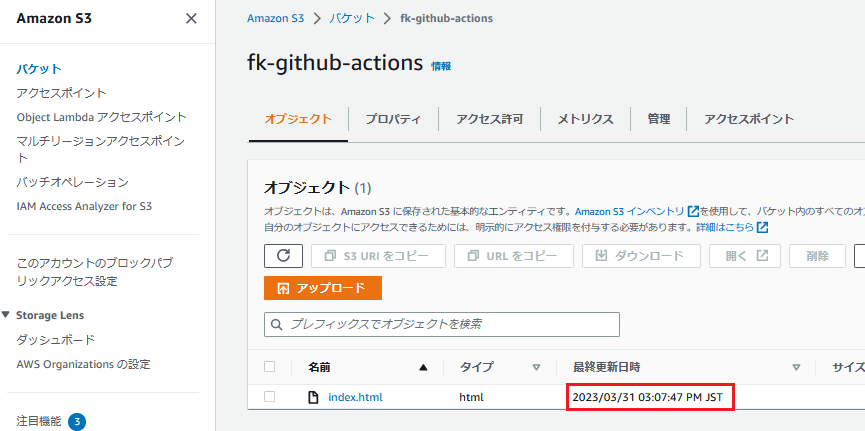

  • S3の確認

S3にも無事にファイルがコピーされていることが分かります。

終わりに

今回は、GitHub ActionsでIAMロールを利用してAWSへアクセスしてみました。

どなたかのお役に立てれば幸いです。
